Pd::NoPdTouchEditPrivate Class Reference

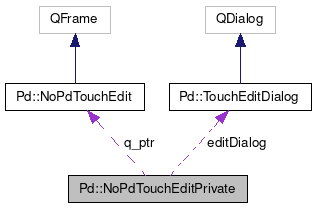

Collaboration diagram for Pd::NoPdTouchEditPrivate:

Private Member Functions
	NoPdTouchEditPrivate (NoPdTouchEdit *parent)
void	openDialog ()
	Opens the edit dialog. More...
void	retranslate ()
	Retranslate the widget. More...
	Q_DECLARE_PUBLIC (NoPdTouchEdit)

Private Attributes
NoPdTouchEdit *const	q_ptr
double	value = DEFAULT_VALUE
	Current value. More...
Qt::Alignment	alignment = DEFAULT_ALIGNMENT
	Text alignment. More...
quint32	decimals = DEFAULT_DECIMALS
	Number of decimal digits. More...
QString	suffix = DEFAULT_SUFFIX
	Suffix, that is appended to the displayed string. More...
double	lowerLimit = DEFAULT_LOWERLIMIT
double	upperLimit = DEFAULT_UPPERLIMIT
int	editDigit = 0
TouchEditDialog *	editDialog = nullptr

Constructor & Destructor Documentation

NoPdTouchEditPrivate()

Pd::NoPdTouchEditPrivate::NoPdTouchEditPrivate ( NoPdTouchEdit *  parent )

inlineprivate

Member Function Documentation

openDialog()

void NoPdTouchEditPrivate::openDialog ( )

private

Opens the edit dialog.

References decimals, editDialog, editDigit, Pd::TouchEditDialog::getEditDigit(), Pd::TouchEditDialog::getValue(), lowerLimit, Pd::TouchEditDialog::setDecimals(), Pd::TouchEditDialog::setEditDigit(), Pd::TouchEditDialog::setLowerLimit(), Pd::TouchEditDialog::setSuffix(), Pd::TouchEditDialog::setUpperLimit(), Pd::TouchEditDialog::setValue(), suffix, upperLimit, and value.

Q_DECLARE_PUBLIC()

Pd::NoPdTouchEditPrivate::Q_DECLARE_PUBLIC ( NoPdTouchEdit  )

private

retranslate()

void NoPdTouchEditPrivate::retranslate ( )

private

Retranslate the widget.

Member Data Documentation

alignment

Qt::Alignment Pd::NoPdTouchEditPrivate::alignment = DEFAULT_ALIGNMENT

private

Text alignment.

decimals

quint32 Pd::NoPdTouchEditPrivate::decimals = DEFAULT_DECIMALS

private

Number of decimal digits.

Referenced by openDialog().

editDialog

TouchEditDialog* Pd::NoPdTouchEditPrivate::editDialog = nullptr

private

Referenced by openDialog().

editDigit

int Pd::NoPdTouchEditPrivate::editDigit = 0

private

Referenced by openDialog().

lowerLimit

double Pd::NoPdTouchEditPrivate::lowerLimit = DEFAULT_LOWERLIMIT

private

Referenced by openDialog().

q_ptr

NoPdTouchEdit* const Pd::NoPdTouchEditPrivate::q_ptr

private

suffix

QString Pd::NoPdTouchEditPrivate::suffix = DEFAULT_SUFFIX

private

Suffix, that is appended to the displayed string.

The suffix is appended without a separator (like in other Qt classes), so if you want to specify a unit, you'll have to set suffix to " kN", for example.

Referenced by openDialog().

upperLimit

double Pd::NoPdTouchEditPrivate::upperLimit = DEFAULT_UPPERLIMIT

private

Referenced by openDialog().

value

double Pd::NoPdTouchEditPrivate::value = DEFAULT_VALUE

private

Current value.

Referenced by openDialog().

---

The documentation for this class was generated from the following file:

• src/NoPdTouchEdit.cpp
