Pd::Text::Impl Struct Reference

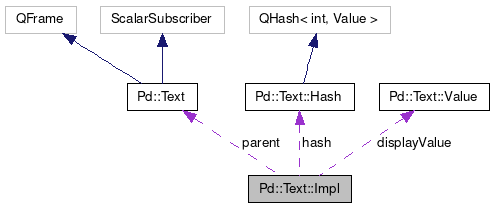

Collaboration diagram for Pd::Text::Impl:

Public Member Functions
	Impl (Text *parent)
void	updateValueText ()
	Looks up the text to display and calls updateDisplayText(), if necessary. More...
void	updateDisplayText ()
	Updates the widget, if the text changed. More...
void	findCondition ()
void	retranslate ()
	Retranslate the widget. More...

Public Attributes
Text *const	parent
Qt::Alignment	alignment
	Text alignment. More...
QString	prefix
	Prefix to display before the displayValue text. More...
QString	suffix
	Suffix to display after the displayValue text. More...
int	processValue
	The current value from the process. More...
bool	dataPresent
	There is a process value to display. More...
const Hash *	hash
	The hash to use. More...
Value	displayValue
	Value object to display. More...
QString	displayText
	Display text. More...
QColor	displayColor
	Display color. More...
QFont	displayFont
	Display font. More...
QList< TextCondition * >	conditions
int	conditionIndex
QTimer	conditionTimer
bool	conditionActive

Constructor & Destructor Documentation

Impl()

Pd::Text::Impl::Impl ( Text *  parent )

inline

References Pd::Text::Impl::parent.

Member Function Documentation

findCondition()

void Pd::Text::Impl::findCondition ( )

inline

References Pd::Text::Impl::conditionIndex, Pd::Text::Impl::conditions, Pd::Text::Impl::conditionTimer, Pd::TextCondition::getInvert(), and Pd::Text::Impl::updateDisplayText().

retranslate()

void Pd::Text::Impl::retranslate ( )

inline

Retranslate the widget.

References Pd::Text::Impl::parent.

updateDisplayText()

void Pd::Text::Impl::updateDisplayText ( )

inline

Updates the widget, if the text changed.

References Pd::Text::Value::color, Pd::Text::Impl::conditionActive, Pd::Text::Impl::conditionIndex, Pd::Text::Impl::conditions, Pd::Text::Impl::displayColor, Pd::Text::Impl::displayFont, Pd::Text::Impl::displayText, Pd::Text::Impl::displayValue, Pd::Text::Value::font, Pd::TextCondition::getInvert(), Pd::TextCondition::getText(), Pd::Text::Impl::parent, and Pd::Text::Value::text.

Referenced by Pd::Text::Impl::findCondition(), and Pd::Text::Impl::updateValueText().

updateValueText()

void Pd::Text::Impl::updateValueText ( )

inline

Looks up the text to display and calls updateDisplayText(), if necessary.

This method is public, because it has to be called on language changes.

References Pd::Text::Impl::dataPresent, Pd::Text::Impl::displayValue, Pd::Text::Impl::hash, Pd::Text::Impl::prefix, Pd::Text::Impl::processValue, Pd::Text::Impl::suffix, Pd::Text::Value::text, and Pd::Text::Impl::updateDisplayText().

Member Data Documentation

alignment

Qt::Alignment Pd::Text::Impl::alignment

Text alignment.

conditionActive

bool Pd::Text::Impl::conditionActive

Referenced by Pd::Text::Impl::updateDisplayText().

conditionIndex

int Pd::Text::Impl::conditionIndex

Referenced by Pd::Text::Impl::findCondition(), and Pd::Text::Impl::updateDisplayText().

conditions

QList<TextCondition *> Pd::Text::Impl::conditions

Referenced by Pd::Text::Impl::findCondition(), and Pd::Text::Impl::updateDisplayText().

conditionTimer

QTimer Pd::Text::Impl::conditionTimer

Referenced by Pd::Text::Impl::findCondition().

dataPresent

bool Pd::Text::Impl::dataPresent

There is a process value to display.

Referenced by Pd::Text::Impl::updateValueText().

displayColor

QColor Pd::Text::Impl::displayColor

Display color.

Referenced by Pd::Text::Impl::updateDisplayText().

displayFont

QFont Pd::Text::Impl::displayFont

Display font.

Referenced by Pd::Text::Impl::updateDisplayText().

displayText

QString Pd::Text::Impl::displayText

Display text.

Referenced by Pd::Text::Impl::updateDisplayText().

displayValue

Value Pd::Text::Impl::displayValue

Value object to display.

Referenced by Pd::Text::Impl::updateDisplayText(), and Pd::Text::Impl::updateValueText().

hash

const Hash* Pd::Text::Impl::hash

The hash to use.

Referenced by Pd::Text::Impl::updateValueText().

parent

Text* const Pd::Text::Impl::parent

Referenced by Pd::Text::Impl::Impl(), Pd::Text::Impl::retranslate(), and Pd::Text::Impl::updateDisplayText().

prefix

QString Pd::Text::Impl::prefix

Prefix to display before the displayValue text.

Referenced by Pd::Text::Impl::updateValueText().

processValue

int Pd::Text::Impl::processValue

The current value from the process.

Referenced by Pd::Text::Impl::updateValueText().

suffix

QString Pd::Text::Impl::suffix

Suffix to display after the displayValue text.

Referenced by Pd::Text::Impl::updateValueText().

---

The documentation for this struct was generated from the following file:

• src/Text.cpp
