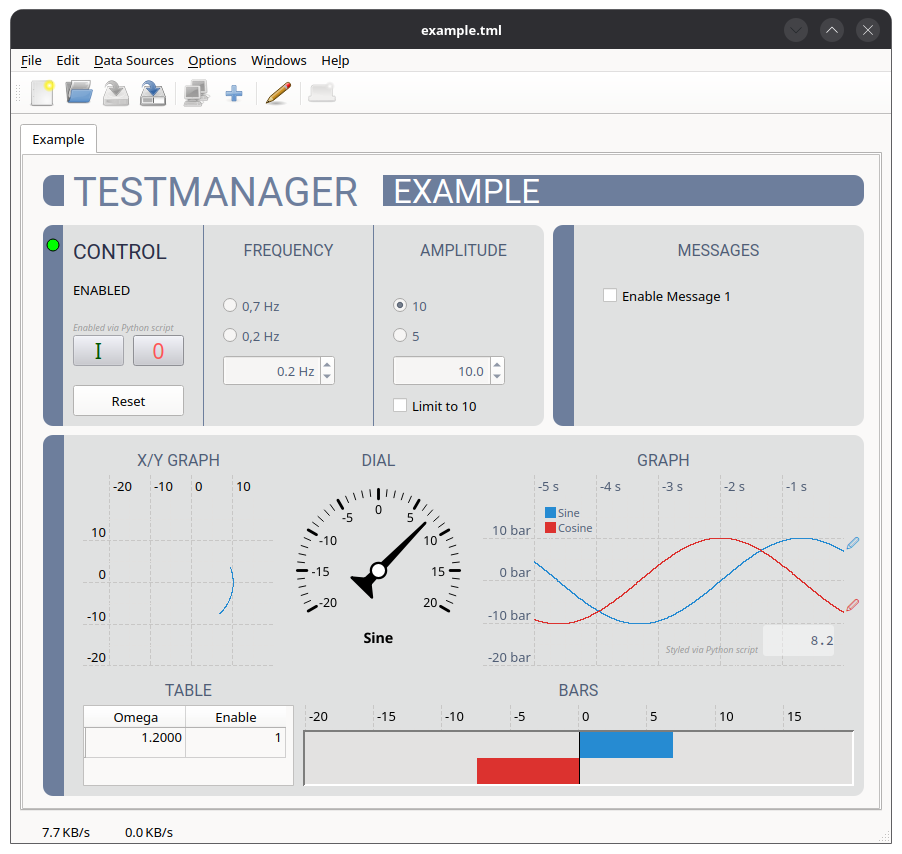

Testmanager uses the widgets of the QtPdWidgets library.
| Widget | Purpose | Variables |
|---|---|---|
| Bar | Bar graph | Signals, vectors |
| CheckBox | Switch a boolean parameter | Parameter |

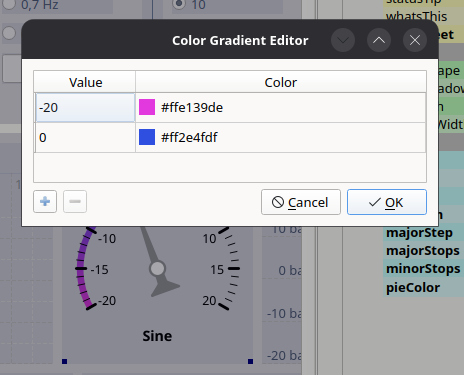

| Dial | Analog gauge | Signal, parameter |
| Digital | Numeric display | Signal |
| DoubleSpinBox | Numeric input | Parameter |
| Graph | Time graph | Signals |
| XYGraph | X/Y graph | Two signals |
| Led | Boolean indicator | Signal |
| ParameterSetWidget | Apply parameter sets | – |
| PushButton | Set a parameter on click | Parameter |
| QLabel | Static text or image | – |
| RadioButton | Select a value of a parameter | Parameter |
| Rotor | Rotating display | Signals |
| SendBroadcast | Send a broadcast message | – |

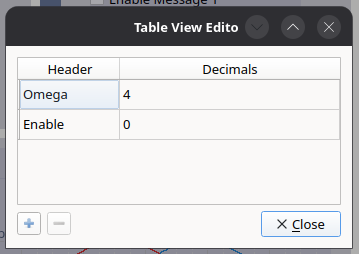

| TableView | Table of vector values | Signals, parameters |

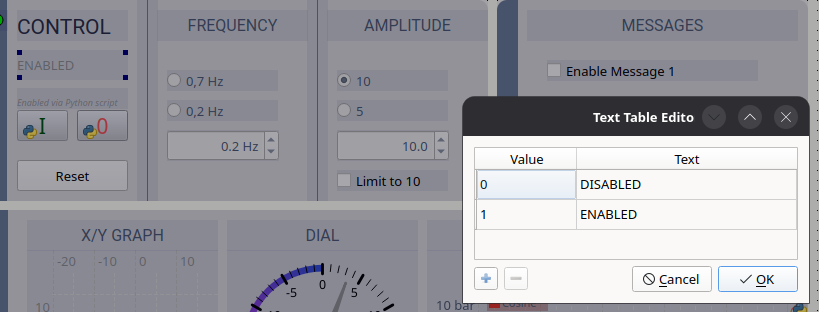

| Text | Text depending on a value | Signal |
| TouchEdit | Numeric input for touch screens | Parameter |
